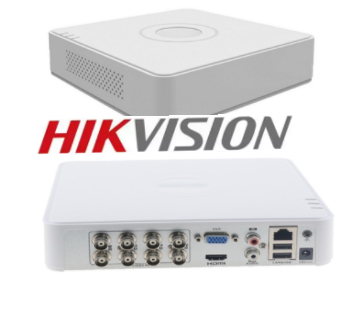

Hikvision 8 Channel 720P Mini DVR

DS-7108HGHI-F1

Hikvision 8-Ch TURBO HD 720P DVR

Hikvision 8-Ch TURBO HD 720P Embedded DVR. H.264, Analogue and HD-TVI video input, 1-Ch Audio input, HDMI and VGA output at up to 1920×1080P, 1x SATA interface, Mini 1U case, 12VDC. Compatible with the C0T and C2T Cameras Only

Features:

• H.264 /H.264+& Dual-stream video compression
• Support both HD-TVI /analog and AHD cameras with adaptive access
• Full channel recording at up to 1080P lite resolution
• HDMI and VGA output at up to 1920×1080P resolution
• Long transmission distance over coax cable
• Support 4-ch synchronous playback at 720P resolution

Specifications
Product Code	DS-7108HGHI-F1
Video/Audio Input
Audio Input	1-ch
Video Compression	H.264, H.264+
Analog and HD-TVI video input	8-ch BNC interface (1.0Vp-p, 75 Ω)
Supported camera types	Support HDTVI input: 1080p/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
	Support AHD input: 720P/25Hz, 720P/30Hz
	support CVBS input
Video Input Interface	BNC (1.0 Vp-p, 75Ω)
Audio Compression	G.711u
Audio Input Interface	RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
HDMI/VGA Output	1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz
Recording resolution	When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF;
	When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
Frame Rate	Main stream:
	When 1080p Lite mode not enabled:
	For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
	When 1080p Lite mode enabled:
	1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Video Bit Rate	32 Kbps ~ 4 Mbps
Stream Type	Video/Video&Audio
Audio Bit Rate	64kbps
Dual Stream	Support
Playback Resolution	1080p lite/720p/WD1/4CIF/VGA/CIF
Synchronous Playback	8-ch
Network management
Remote connections	128
Network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Hard Disk Driver
Interface Type	1 SATA Interface
Capacity	Up to 6 TB capacity for each disk
External Interface
Network Interface	1; 10M / 100M self-adaptive Ethernet interface
USB Interface	2 USB 2.0 Interfaces
General
Power Supply	12V DC
Consumption	≤ 12W(Without hard disks)
Working Temperature	-10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working Humidity	10% ~ 90%
Dimensions	200 x 200 x 45mm (7.9 x 7.9 x 1.8 inch)
Weight	≤ 0.8 kg / 1.8 lb(without hard disks)
